Finder
Finder 55 Series Miniature GP Relay 10A 2CO 110V AC Coil with PB plus LED plus Mech Indicator
- Item No.:
- 55320054110VAC
- Product Range:
- Panel Mount and Power Relay
Download product datasheet

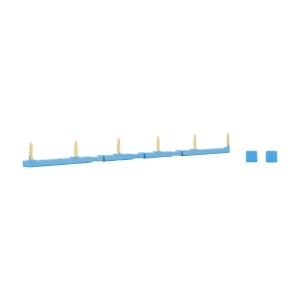

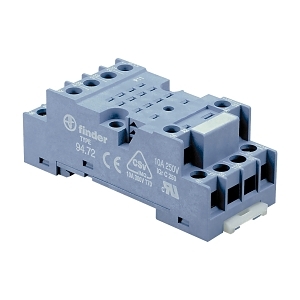

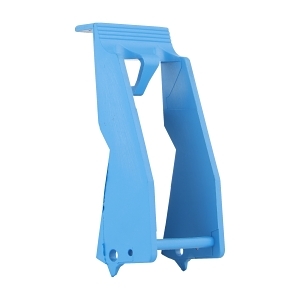

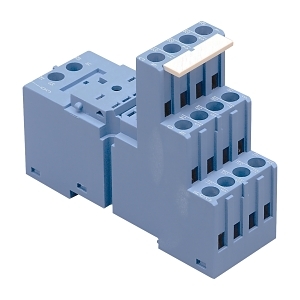

Popular Accessories
Electrical
- Nominal current
- 10 A
- Nominal voltage AC
- 250 V
- Max. rated operation voltage Ue AC
- 400 V
- Number of contacts as change-over contact
- 2
- Drive, switching attitude
- Mono stable
- Rated switching power at AC-1
- 2500 VA
- Rated switching power at AC-15, 230V
- 500 VA
- Breaking capacity at DC-1, 30V
- 10 A
- Breaking capacity at DC-1, 110V
- 0.25 A
Construction
- Material contact
- Silver nickel
- With mechanical indicator
- Yes
- With latching test button
- Yes
- Suitable for plug-in socket mounting
- Yes
Dimensions
- Width
- 20.7 mm
- Height
- 27.7 mm
- Depth
- 36.7 mm
Mechanical
- Mechanical life (service cycles)
- 20000000 cycles
- Max. shock acceleration
- 16 g
- Max. shock duration
- 3 ms
- Max. vibration acceleration
- 15 m/s²
- Max. vibration frequency, operational
- 55 Hz
Environment
- Operating temperature
- -40...85 °C
