Socomec

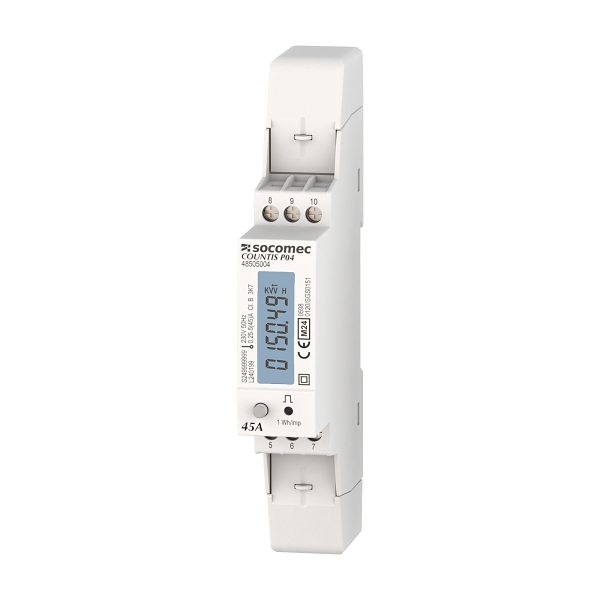

Socomec Countis P04 Single Phase Direct Connect Energy Meter 45A RS485 Pulse Single DIN
Item No. 48505004
Product Range: Countis P
Component Type (ETIM Class)
Kilowatt-hour meter
Electrical
Pole typeSingle phase
Nominal current (In)45 A
Max. current (Imax)45 A
Nominal voltage (Un) N-L230-230 V
Frequency50-60 Hz
Supply voltage184-276 V
Type of electric connectionScrew connection
Accuracy classB
Tariff typeMulti-tariff
Communication
Type of interfaceModbus
Pulse outputOptic
Pulse typeS0
With lock codeYes
Construction
ModelDirect measurement
Type of meterElectronic
Suitable forPurchase/supply
Type of indicationDigital
Mounting methodDRA (DIN-rail adapter)
Degree of protection (IP), front sideIP51
EEC40 signatureNo
IP ratingIP20
Mechanical
Escapement mechanismNo
Dimensions
Width18 mm
Depth68 mm
Height118 mm
Width in number of modular spacings1
Environment
Operating temperature-40...70 °C
Certificates/Approvals
ApprovalMeasuring Instruments Directive
