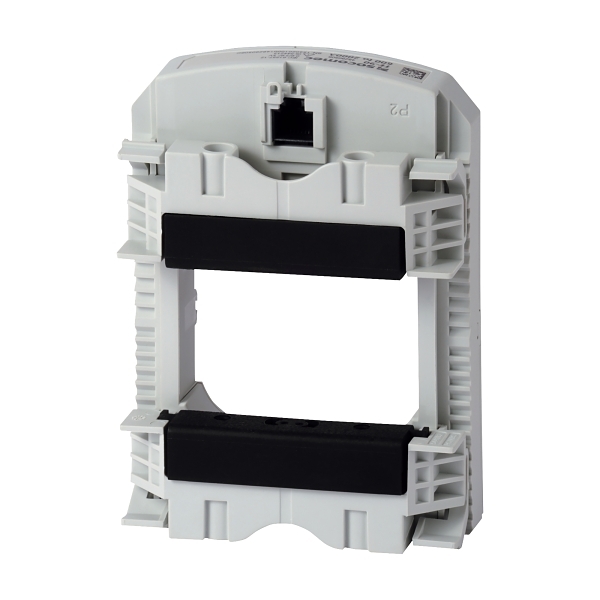

Product image is indicative only and provided as a guide.
Socomec
Socomec TE-90 Solid Core CT 600-2000A 64 x 64mm Holes 90mm Centres for Digiware and DIRIS A-xx
- Item No.:
- 48290506
- Product Range:
- TE Solid Core
Download product datasheet
Popular Accessories
Construction
- Current transformer type
- Solid core
- Material housing
- Plastic
- Model
- Through-feed current converter
- With shock protection
- Yes
- Snap mounting
- Yes
- With copper rail
- Yes
- Secondary connection
- Plug-in connection
- Number of primary inputs
- 1
Electrical
- Primary rated current
- 2000 A
- Secondary current on CT
- 0.1 A
- Rated operating frequency
- 50-60 Hz
- Max. operating voltage (Umax)
- 600 V
- Rated short time thermal current Ith (x primary current)
- 20 kA
- Accuracy class
- 0.2S
- Over current limiting factor
- FS 10
- Secondary rated apparent power
- 0.1 VA
- Calibrated
- Yes
Environment
- Storage temperature
- -25...85 °C
Dimensions
- Opening diameter
- 64 mm
- Height opening
- 64-64 mm
- Width opening
- 64-64 mm
