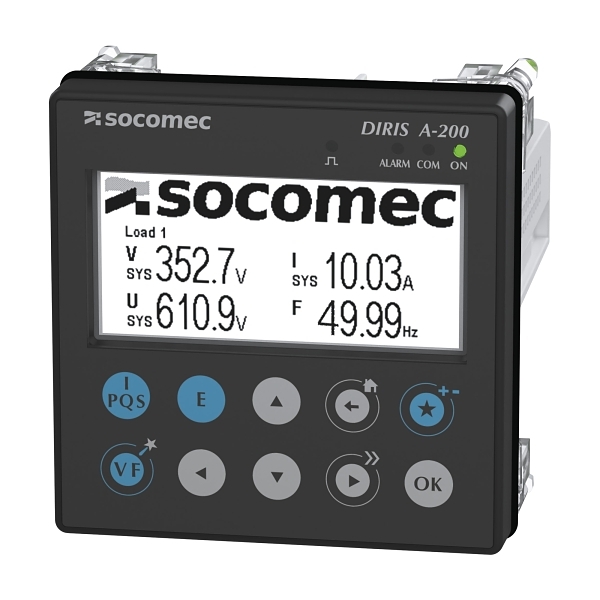

Socomec DIRIS A-200 Quick Connect Power Quality Meter RS485 Dual Ethernet
- Item No.:
- 48250604
- Product Range:
- DIRIS A-200
Download product datasheet
Popular Accessories
Electrical
- Pole type
- Three conductor/four conductor
- Voltmeter
- Yes
- Pulse counter
- No
- Effective power measurement device
- Yes
- Accuracy class active energy according to IEC 62053-22
- 0.1S
- Accuracy class reactive energy according to IEC 62053-23
- Other
- Voltage type of supply voltage
- AC
- Sampling frequency
- 9600 Hz
- Ethernet-connections
- 2
Construction
- Model
- Measurement transformer
- Number of analogue inputs
- 0
- Number of analogue outputs
- 0
- Number of digital inputs
- 3
- Number of digital outputs
- 1
- Mounting method
- Front mounting
- Degree of protection (IP), front side
- Other
Communication
- Supporting protocol for other bus systems
- Yes
- Supporting protocol for Modbus
- Yes
- Supporting protocol for BACnet
- Yes
- Web server with HTTPS transfer protocol
- Yes
- Supporting protocol for IEC 61850 Ethernet
- No
- Supporting protocol for OPC UA PubSub
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for PROFINET IO
- No
- With firmware signature
- Yes
Mechanical
- Display
- Graphic
- Remote display
- No
Dimensions
- Depth
- 108 mm
- Width
- 98.5 mm
- Height
- 98.5 mm
Environment
- Operating temperature
- -25...70
- Storage temperature
- -40...85 °C
