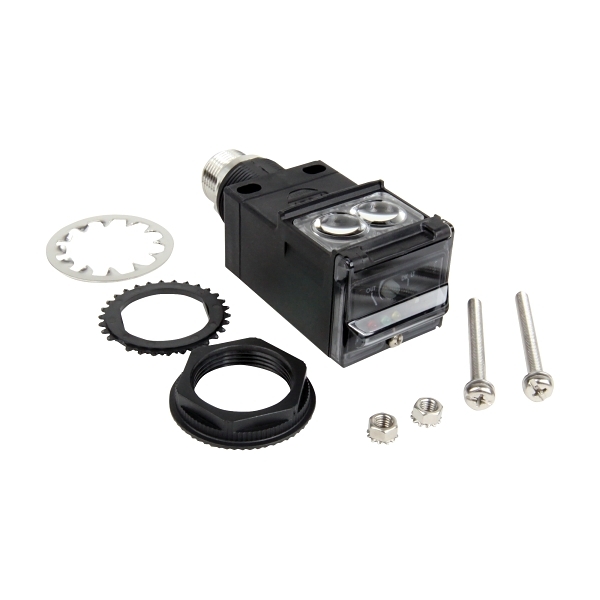

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley 42GRP Photoelectric Sensor Diffuse 70-240V AC DC range 50mm-1.5m SPDT EM Mini 5
- Item No.:
- 42GRP9002QD
- Product Range:
- Photoelectric Sensors
Download product datasheet
Photometric
- Sensing type
- Standard diffuse
- Type of light
- Other
- Wavelength of the sensor
- 660 nm
- Beam angle
- 3.5 °
- Max. switching distance
- 1500 mm
- Sensing mode
- Light-/dark switching
- Operating distance
- 50-1500 mm
Construction
- Material of optical surface
- Plastic
- Material housing
- Plastic
- Construction type housing
- Special construction
- IP rating
- IP67
- Degree of protection (NEMA)
- 4X
Dimensions
- Width sensor
- 41.91 mm
- Height of sensor
- 74.93 mm
- Length of sensor
- 40 mm
- Thread size
- 30 mm
Electrical
- Setting procedure
- Manual adjustment
- Voltage type
- AC/DC
- Rated control supply voltage Us at AC 50HZ
- 70-264 V
- Rated control supply voltage Us at DC
- 70-264 V
- Type of switching output
- Relay contact
- Response time
- 15 ms
- Type of electric connection
- Connector M12
- Number of conductors
- 4
- Type of switch function
- Change-over contact (NO/NC)
Environment
- Ambient temperature
- -34...70 °C
