Product image is indicative only and provided as a guide.
Allen-Bradley

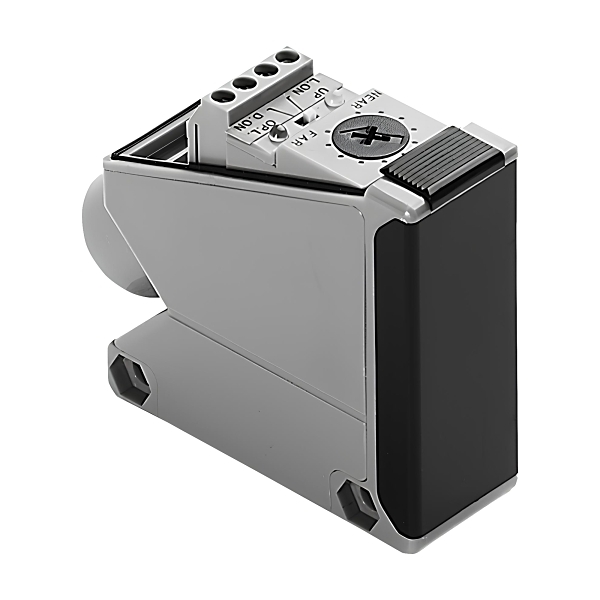

Allen-Bradley 42BC Photoelectric Sensor Background Suppression 24-240V AC DC Range 0.2-1m
- Item No.:
- 42BCB1CRALT4
- Product Range:
- Photoelectric Sensors
Download product datasheet
Photometric
- Type of light
- Infrared light
- Wavelength of the sensor
- 880 nm
- Operating distance
- 1000 mm
Construction
- Material of optical surface
- Plastic
- Material housing
- Plastic
- Construction type housing
- Cuboid
- IP rating
- IP65
- Suitable for safety functions
- No
Dimensions
- Width sensor
- 26 mm
- Height of sensor
- 69 mm
- Length of sensor
- 85 mm
Electrical
- Setting procedure
- Manual adjustment
- Voltage type
- AC/DC
- Rated control supply voltage Us at DC
- 12-24 V
- Type of switching output
- Relay contact
- Response time
- 20 ms
- Number of protected contact energized outputs
- 1
- Type of electric connection
- Screw connection
- Max. output current
- 3000 mA
Environment
- Ambient temperature
- -25...55 °C
Communication
- Triangulation
- Background fade-out
Mechanical
- With time function
- No
