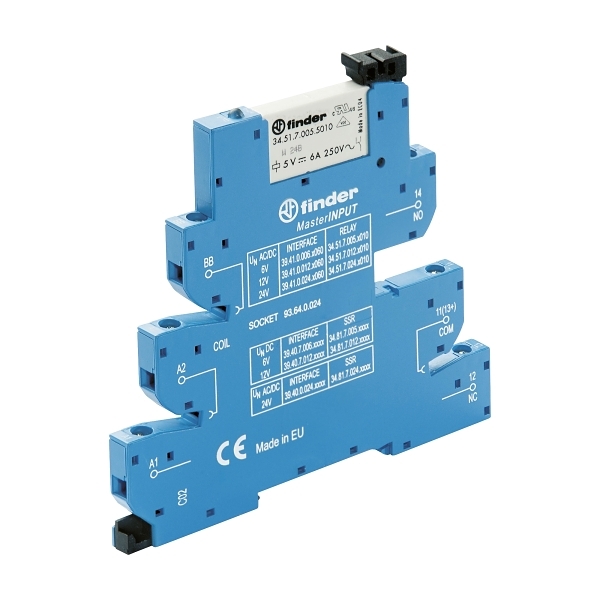

Product image is indicative only and provided as a guide.
Finder
Finder 39 Series Master Input Relay Interface Modules 6A 1 NO Contact 125V AC DC Coil Gold Contacts
- Item No.:
- 3941125VACDC
- Product Range:
- Relay Interface Module
Download product datasheet
Electrical
- Nominal current
- 6 A
- Nominal voltage AC
- 250 V
- Max. rated operation voltage Ue AC
- 400 V
- Number of contacts as change-over contact
- 1
- Drive, switching attitude
- Mono stable
- Rated switching power at AC-1
- 1500 VA
- Rated switching power at AC-15, 230V
- 300 VA
- Breaking capacity at DC-1, 30V
- 6 A
- Breaking capacity at DC-1, 110V
- 0.2 A
Construction
- Material contact
- Silver nickel
- Complete with socket
- Yes
- Suitable for DIN rail mounting
- Yes
- IP rating
- IP20
- Material of contact surface
- Gold
Dimensions
- Width
- 6.2 mm
- Height
- 94.3 mm
- Depth
- 90.7 mm
Mechanical
- Mechanical life (service cycles)
- 10000000 cycles
- Max. shock duration
- 1 ms
- Max. vibration acceleration
- 10 m/s²
- Max. vibration frequency, operational
- 55 Hz
Environment
- Operating temperature
- -40...70 °C
