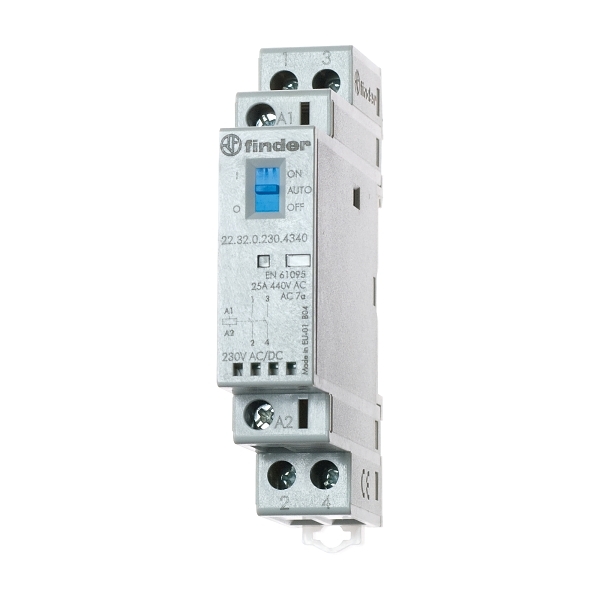

Finder 22 Series Modular Contactor 25A 230V AC DC Coil 2 Normally Open Contacts
- Item No.:
- 22324340230VACDC
- Product Range:
- Modular Contactor
Download product datasheet
Popular Accessories
Electrical
- Rated operation current
- 25 A
- Rated operating voltage
- 250-400 V
- Voltage type for actuating
- AC/DC
- Rated excitation voltage 2
- 184264 V
- Rated excitation voltage
- 176-264 V
- Rated operation current Ie at AC-1
- 25 A
- Rated operation current Ie at AC-3
- 10 A
- Number of contacts as normally open contact
- 2
- Number of contacts as normally closed contact
- 0
Construction
- Hum-free
- Yes
- IP rating
- IP20
- Additional equipment possible
- Yes
- With day/night function
- No
Dimensions
- Height
- 88.8 mm
- Width
- 17.5 mm
- Depth
- 60.8 mm
- Width in number of modular spacings
- 1
Photometric
- Max. incandescent lamp load
- 2000 W
- Max. load fluorescent lamp
- 500 VA
