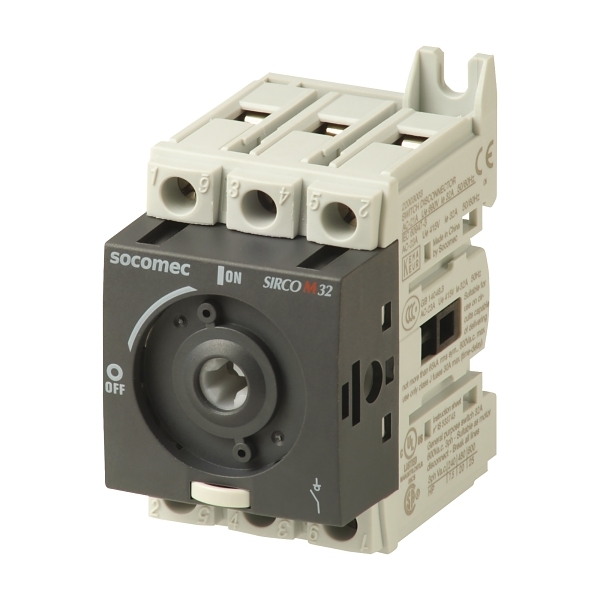

Product image is indicative only and provided as a guide.
Socomec
Socomec SLBM Load Break Switch Body, Base/DIN Rail mount, 3P 25A
- Item No.:
- 22003002
- Product Range:
- SLBM
Download product datasheet
Electrical
- Rated operating voltage Ue
- 400-690 V
- Max. rated operation voltage Ue AC
- 800 V
- Rated permanent current at AC-21, 400 V
- 25 A
- Rated uninterrupted current Iu
- 25 A
- Number of poles
- 3
- Rated operation power at AC-23, 400 V
- 11 kW
- Rated short-time withstand current lcw
- 1.26 kA
- Type of control element
- Other
- Type of electrical connection of main circuit
- Screw connection
Construction
- Device construction
- Built-in device fixed built-in technique
- Colour control element
- Other
- Degree of protection (IP), front side
- IP20
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Version as emergency stop installation
- Yes
- Version as reversing switch
- No
- Number of switches
- 1
Mechanical
- Mechanical life (service cycles)
- 10000 cycles
Dimensions
- Height
- 68 mm
- Width
- 45 mm
- Depth
- 64 mm
- Connectable conductor cross section
- 2.5-25 mm²
