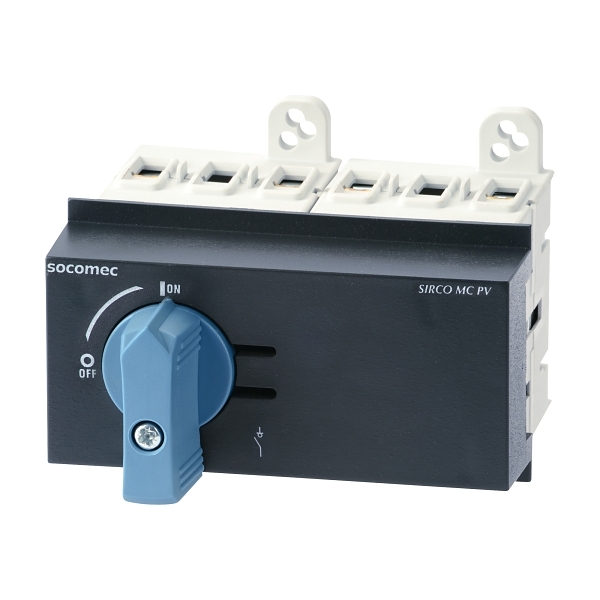

Product image is indicative only and provided as a guide.
Socomec
Socomec Isolator 1000V DC 6P 25A
- Item No.:
- 21PV6722
- Product Range:
- SIRCO DC
Download product datasheet
Electrical
- Max. rated operation voltage Ue AC
- 1000 V
- Rated uninterrupted current Iu
- 25 A
- Number of poles
- 3
- Rated insulation voltage Ui
- 1000 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Type of control element
- Other
- Type of electrical connection of main circuit
- Screw connection
- Rated operating voltage
- 600-1000 V
- Number of auxiliary contacts as normally closed contact
- 0
Construction
- Device construction
- Built-in device fixed built-in technique
- Colour control element
- Other
- Degree of protection (IP), front side
- IP20
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Version as emergency stop installation
- Yes
- Version as reversing switch
- No
- Number of switches
- 1
Dimensions
- Height
- 78 mm
- Width
- 89 mm
- Depth
- 66.5 mm
- Weight
- 0.14 kg
