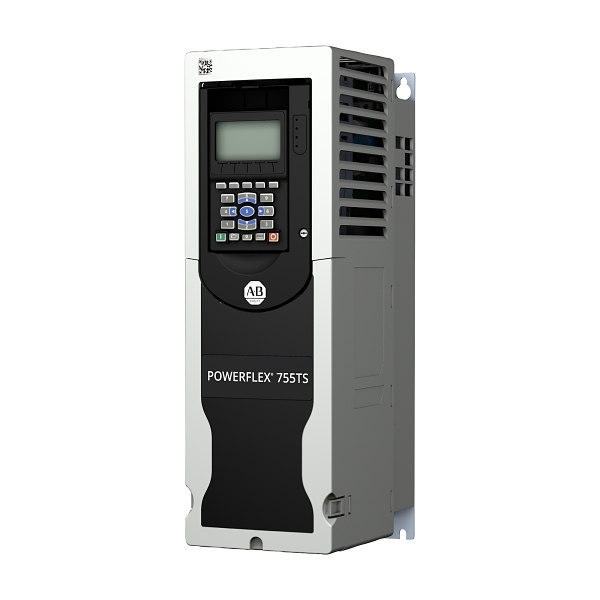

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley PowerFlex 755TS VSD 480V IP20 ND 77A 60HP or HD 65A 50HP Frame 5
- Item No.:
- 20G21ND077JA0NNNNN
- Product Range:
- PowerFlex 755T
Download product datasheet
Electrical
- Number of phases input
- 3
- Nominal input voltage
- 480 V
- Nominal output power AC
- 44.7 kW
- Nominal output current I2N
- 77 A
- kW rating, normal duty
- 44 kW
- kW rating, heavy duty
- 37 kW
- Dynamic braking transistor
- Yes
- Control characteristic
- PID
- EMC-version
- Yes
Construction
- Suitable for safety functions
- Yes
- Contains keypad
- Yes
- Frame size
- 5
- IP rating
- IP20
- Degree of protection (NEMA)
- Other
Communication
- Integrated motion function
- No
Dimensions
- Height
- 550 mm
- Width
- 270 mm
- Depth
- 212 mm
- Weight
- 21 kg
Environment
- Operating temperature
- -20...60 °C
- Storage temperature
- -40...70 °C
