Product image is indicative only and provided as a guide.
Allen-Bradley

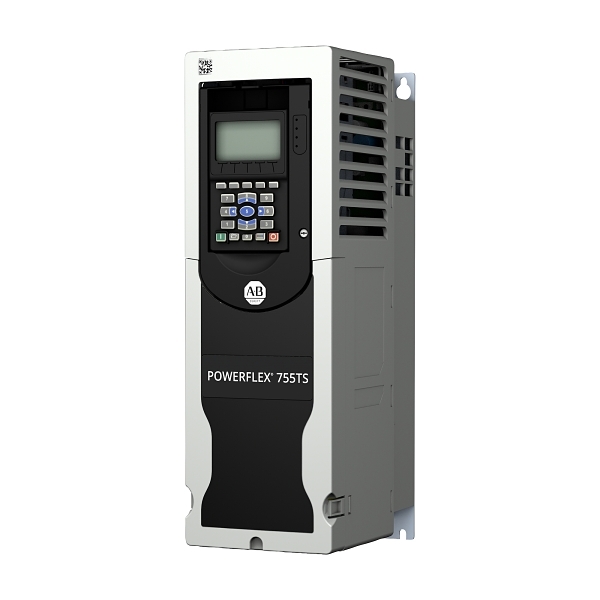

Allen-Bradley PowerFlex 755TS VSD 400V IP20 ND 43A 22kW or HD 37A 18.5kW Frame 3
- Item No.:
- 20G21FC043JA0NNNNN
- Product Range:
- PowerFlex 755T
Download product datasheet
Electrical
- Number of phases input
- 3
- Nominal input voltage
- 400 V
- Nominal output power AC
- 22 kW
- Nominal output current I2N
- 43 A
- kW rating, normal duty
- 22 kW
- kW rating, heavy duty
- 18.5 kW
- Dynamic braking transistor
- Yes
- Control characteristic
- PID
- EMC-version
- Yes
Construction
- Suitable for safety functions
- Yes
- Contains keypad
- Yes
- Frame size
- 3
- IP rating
- IP20
- Degree of protection (NEMA)
- 4X
Communication
- Integrated motion function
- No
Dimensions
- Height
- 515 mm
- Width
- 260 mm
- Depth
- 212 mm
- Weight
- 12 kg
Environment
- Operating temperature
- -20...60 °C
- Storage temperature
- -40...70 °C
