Socomec

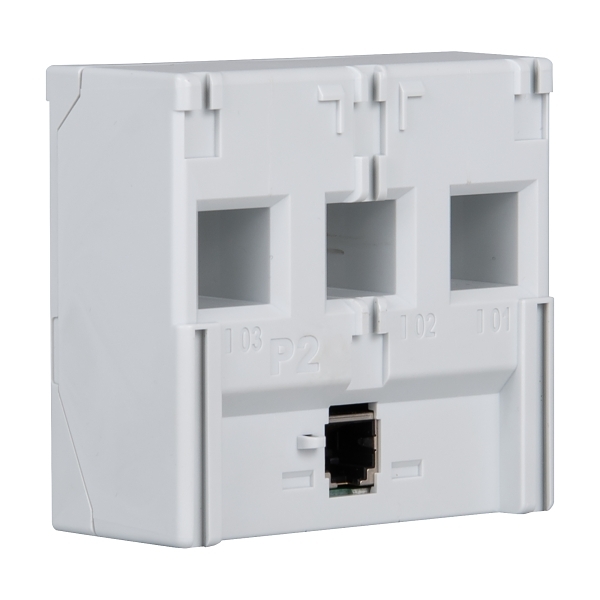

Socomec P44-QCT 3Ph CT 40-160A 13.5 x 23mm Holes 24.8mm Centres
Item No. 194S0425
Product Range: Countis P QCT
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current160 A
Rated operating frequency50-60 Hz
Max. operating voltage (Umax)600 V
Accuracy class1
Over current limiting factorFS 10
Construction
Current transformer typeSolid core
Material housingPlastic
Secondary connectionPlug-in connection
Dimensions
Opening diameter13.5 mm
Height opening13.5-13.5 mm
Width opening13.5-13.5 mm
Environment
Storage temperature-25...85 °C
