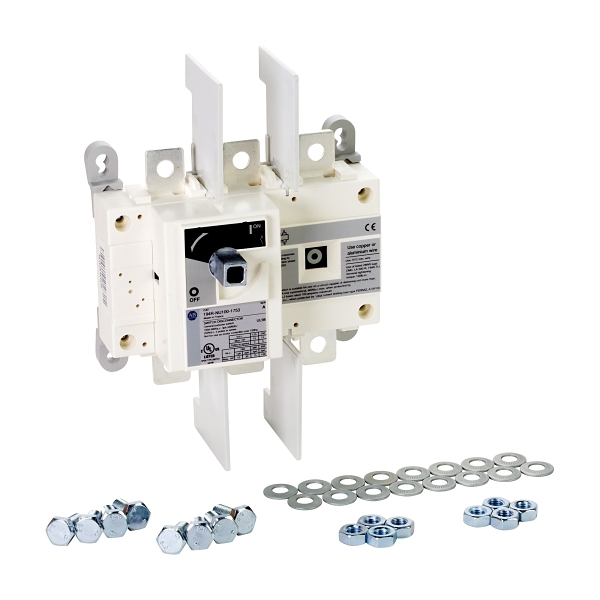

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley 194R Disconnect Switch UL Non Fused Base mount 3 Pole 200A
- Item No.:
- 194RNU2001753
- Product Range:
- 194R Loadbreak
Download product datasheet
Electrical
- Rated uninterrupted current Iu
- 200 A
- Number of poles
- 3
- Type of control element
- Long turning handle
- Type of electrical connection of main circuit
- Screw connection
- Number of auxiliary contacts as normally closed contact
- 0
- Number of auxiliary contacts as normally open contact
- 0
- Motor drive integrated
- No
- Voltage release optional
- No
Construction
- Device construction
- Complete device in housing
- Degree of protection (IP), front side
- IP20
- Version as main switch
- Yes
- Version as maintenance-/service switch
- No
- Version as safety switch
- No
- Version as emergency stop installation
- No
- Version as reversing switch
- No
- Number of switches
- 1
- Suitable for front mounting 4-hole
- No
Dimensions
- Height
- 256 mm
- Width
- 180 mm
- Depth
- 94.6 mm
- Weight
- 1.67 kg
- Connectable conductor cross section
- 300 mm²
Environment
- Rated surrounding temperature without derating
- 60 °C
- Storage temperature
- -40...65 °C
- Allowable relative humidity
- 95 %
