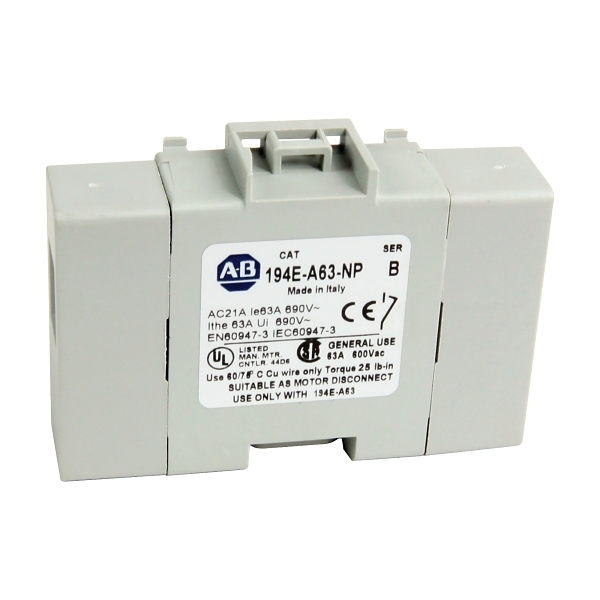

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley 194E Disconnect Switch Complete, Base/DIN Rail mount, Type N Act. RD/YL 3 Pole 63A
- Item No.:
- 194EA6317536N
- Product Range:
- 194E
Download product datasheet
Electrical
- Max. rated operation voltage Ue AC
- 690 V
- Rated permanent current at AC-21, 400 V
- 63 A
- Rated control supply voltage Us at AC 50HZ
- 400-690 V
- Rated uninterrupted current Iu
- 63 A
- Number of poles
- 3
- Frequency
- 60 Hz
- Rated operation power at AC-3, 400 V
- 18.5 kW
- Rated operation power at AC-23, 400 V
- 30 kW
- Rated short-time withstand current lcw
- 1300 kA
Construction
- Device construction
- Built-in device fixed built-in technique
- Colour control element
- Red
- Degree of protection (IP), front side
- IP20
- Degree of protection (NEMA)
- Other
- Version as main switch
- Yes
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- No
- Version as emergency stop installation
- No
- Version as reversing switch
- No
Mechanical
- Padlock locking
- Yes
Dimensions
- Height
- 180 mm
- Width
- 125 mm
- Depth
- 105 mm
- Conductor cross section (solid, stranded)
- 2.5-25 mm²
- Connectable conductor cross section
- 2.5-25 mm²
Environment
- Rated surrounding temperature without derating
- 60 °C
- Storage temperature
- -40...80 °C
