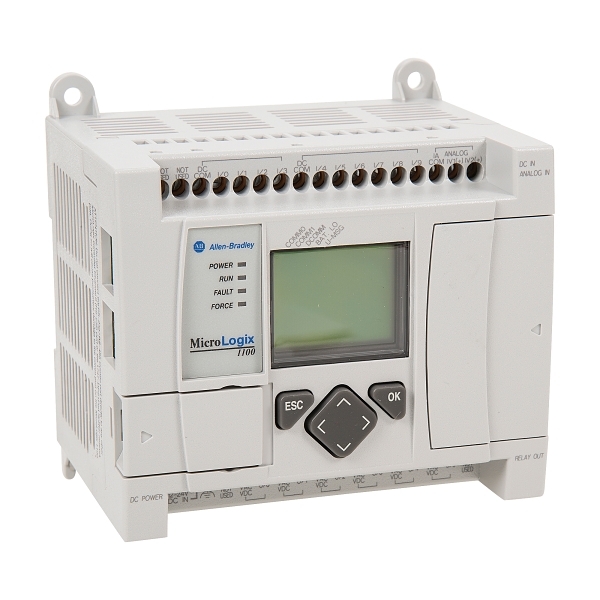

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley MicroLogix 1100 Controller 240VAC 10DI 24VDC 2AI 6DO Relay Ethernet RS232/485
- Item No.:
- 1763L16BWA
- Product Range:
- MicroLogix
Download product datasheet
Electrical
- Voltage type of supply voltage
- AC
- With optical interface
- No
- Redundancy
- No
Construction
- Number of relay outputs
- 6
- Number of analogue outputs
- 2
- Number of analogue inputs
- 2
- Number of digital inputs
- 16
- Number of digital outputs
- 16
- Memory size
- 0 MB
- Additional program memory possible
- Yes
- Suitable for safety functions
- No
- Model
- Modular
Communication
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-485
- 1
- Can be programmed with Connected Components Workbench
- No
- Can be programmed with Studio 5000 Logix Designer
- No
- Can be programmed with RSLogix 500
- Yes
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
Dimensions
- Width
- 110 mm
- Height
- 90 mm
- Depth
- 87 mm
