Allen-Bradley

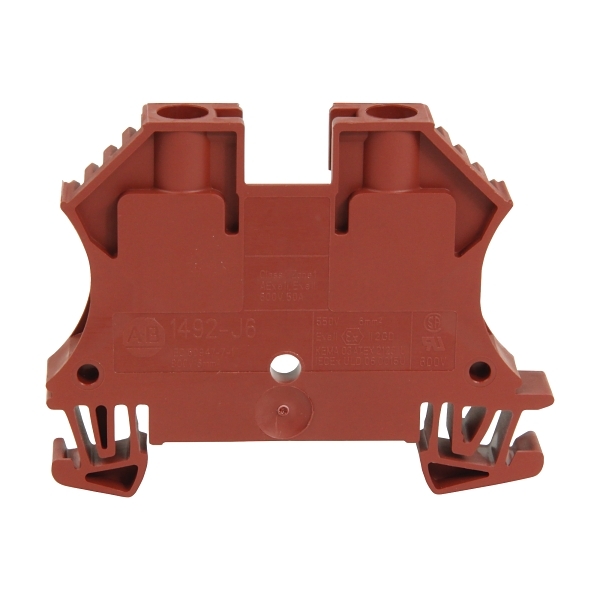

Allen-Bradley 1492-J Screw Connection Terminal 6mm 1 Level 2 Conductor Entries Red
Item No. 1492J6RE
Product Range: 1492J/W
Component Type (ETIM Class)
Feed-through terminal block
Electrical
Type of electrical connection 1Screw connection
Rated current In41 A
Rated voltage800 V
Construction
Number of levels1
Number of clamp positions per level2
ColourRed
Mounting methodDIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to with UL94V0
Mechanical
Nominal tightening torque1.6 Nm
Dimensions
Wire/conductor size0.5-6 mm
Width8.1 mm
Height60 mm
Depth39.5 mm
Wire strip length12 mm
Environment
Insulation temperature-50-120 °C
