Product image is indicative only and provided as a guide.
Allen-Bradley

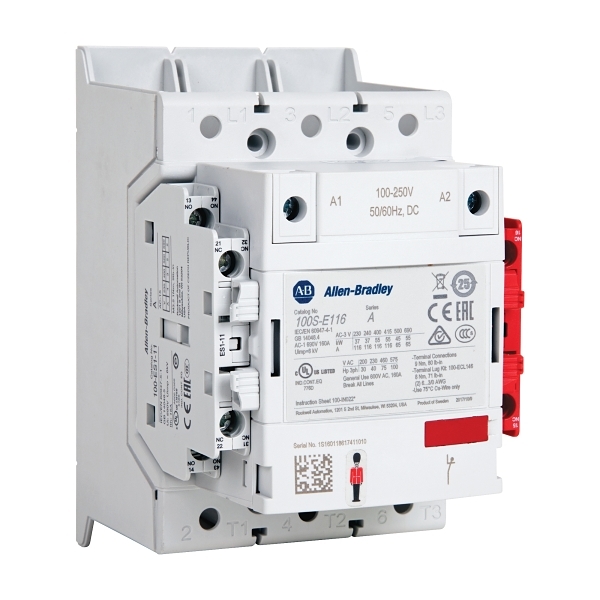

Allen-Bradley 100SE Safety Contactor 55kW 3Pole 48 to 130VAC and VDC Coil with Lugs
- Item No.:
- 100SE116KY12CL
- Product Range:
- 100SE
Download product datasheet
Electrical
- Number of normally open contacts as main contact
- 3
- Number of normally closed contacts as main contact
- 0
- Rated operation current Ie at AC-3, 400 V
- 116 A
- Rated operation power at AC-3, 400 V
- 55 kW
- Rated operation current Ie at AC-1, 400 V
- 160 A
- Max. rated operation voltage Ue AC
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated control supply voltage Us at AC 50HZ
- 48-130 V
- Rated control supply voltage Us at DC
- 48-130 V
Dimensions
- Height
- 150 mm
- Width
- 90 mm
- Depth
- 126 mm
- Weight
- 1.75 kg
Construction
- IP rating
- IP00
- Mounting method
- Screw mounting
