Product image is indicative only and provided as a guide.
Allen-Bradley

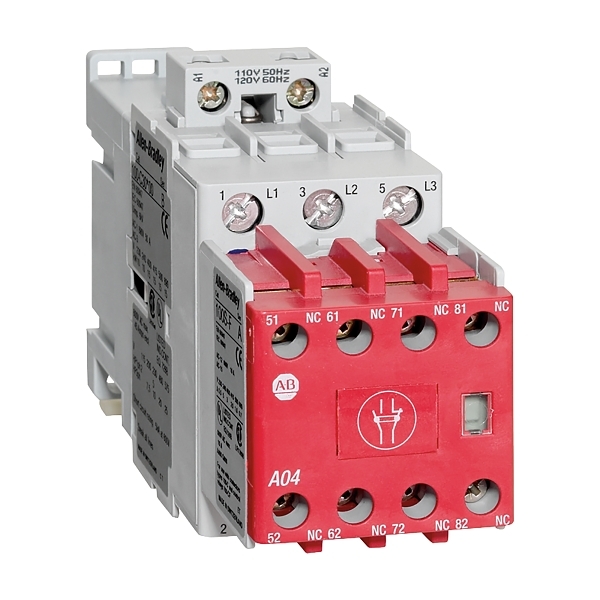

Allen-Bradley 100SC Safety Contactor 5.5kW 4Pole 24VAC Coil 4NC Contact Auxiliary
- Item No.:
- 100SC12K404BC
- Product Range:
- 100SC
Download product datasheet
Electrical
- Number of normally open contacts as main contact
- 4
- Number of normally closed contacts as main contact
- 0
- Rated operation current Ie at AC-3, 400 V
- 12 A
- Rated operation power at AC-3, 400 V
- 5.5 kW
- Rated operation current Ie at AC-1, 400 V
- 32 A
- Max. rated operation voltage Ue AC
- 690 V
- Voltage type for actuating
- AC
- Control supply voltage Us at AC 50HZ
- 24 V
- Number of auxiliary contacts as normally open contact
- 0
Dimensions
- Height
- 81 mm
- Width
- 45 mm
- Depth
- 119.5 mm
- Weight
- 0.45 kg
Construction
- IP rating
- IP20
- Mounting method
- DIN-rail/screw
