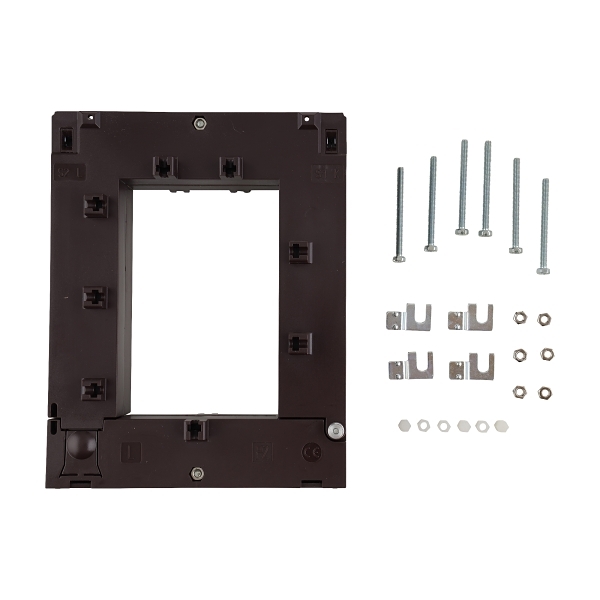

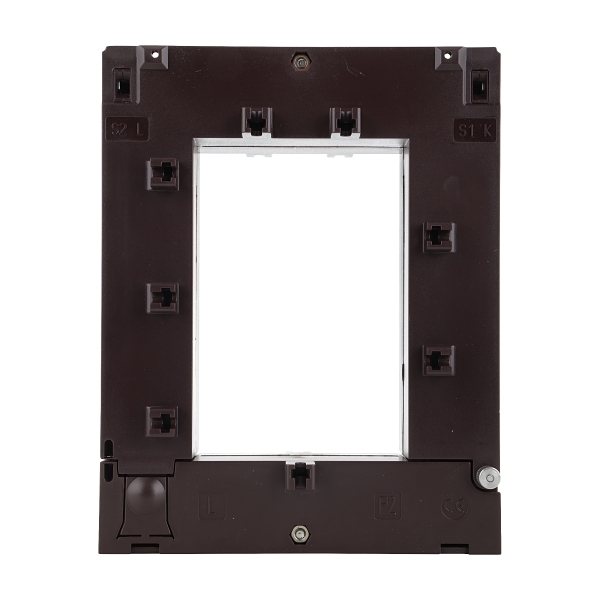

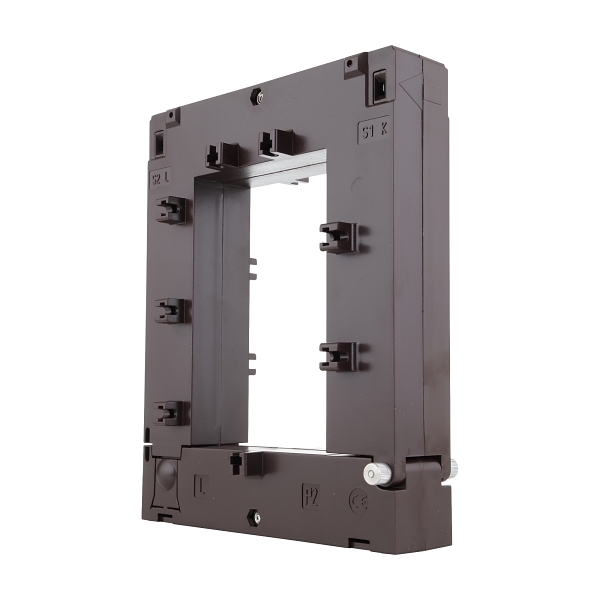

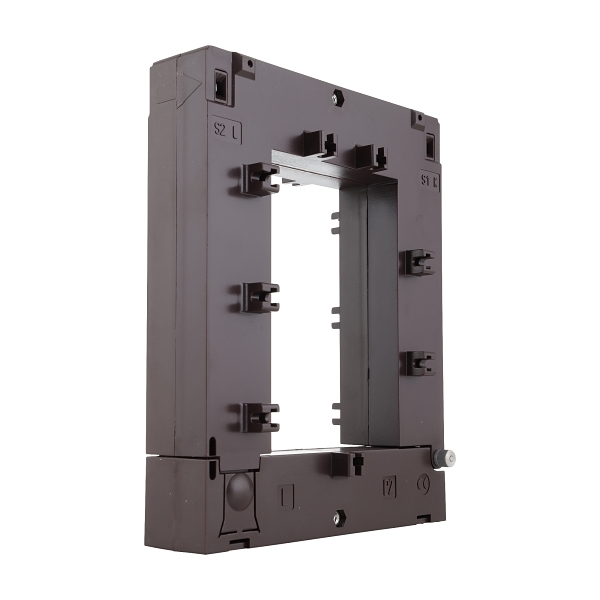

IME TRA812 Split Core Current Transformer 800A/5A 120 x 80mm 7VA Class 1, 3VA Class 0.5
Item No. TRA8128005A
Product Range: Split Core CT
Component Type (ETIM Class)
Current transformer
Electrical
Primary rated current800 A
Secondary current on CT5 A
Rated operating frequency47-63 Hz
Max. operating voltage (Umax)0.72 V
Rated short time thermal current Ith (x primary current)48 kA
Rated continuous thermal current Icth (x primary current)48 kA
Accuracy class0.5
Insulation class (IEC 61869-1, 61869-2)B
Security factor15
Construction
Current transformer typeSplit core
ModelThrough-feed current converter
With shock protectionYes
Snap mountingNo
Secondary connectionScrew connection
Number of primary inputs1
Environment
Storage temperature-40-85 °C
