Carlo Gavazzi

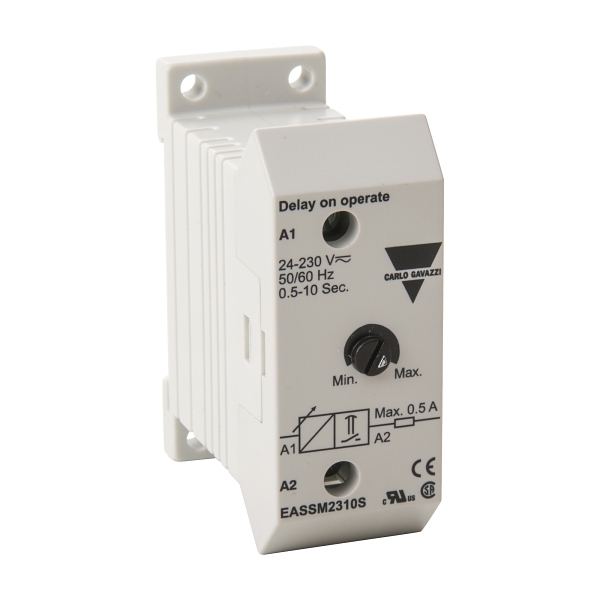

Carlo Gavazzi Timer Relays Timer On Delay 24 to 230V AC DC Supply SCR Output 0.5 to 10 Seconds
Item No. EASSM2310S
Product Range: Timer Relays
Stock availability
Item is sourced for your requirements and cannot be returned or cancelled.
Want to view stock information?
Log inDon't have an account?
Register HerePopular Accessories
Component Type (ETIM Class)
Timer relay
Electrical
Voltage type for actuatingAC
Rated control supply voltage Us at AC 60HZ264-21.6 V
Rated control supply voltage Us at AC 50HZ346-440 V
Number of outputs, delayed, change-over contact1
Type of electric connectionScrew connection
Function delay-on energizationYes
Function delay on de-energizationNo
Function floating contact on energizationNo
Function floating contact on de-energizationNo
Mechanical
Suitable for DIN rail (top hat rail) mountingYes
Mechanical lifetime (control contacts)30000000 c (contacts)
Max. shock acceleration50 g
Max. vibration acceleration4 m/s²
Max. vibration frequency, operational100 Hz
Dimensions
Height80 mm
Depth109 mm
Width22.5 mm
Environment
Operating temperature-25-45 °C
