Steute

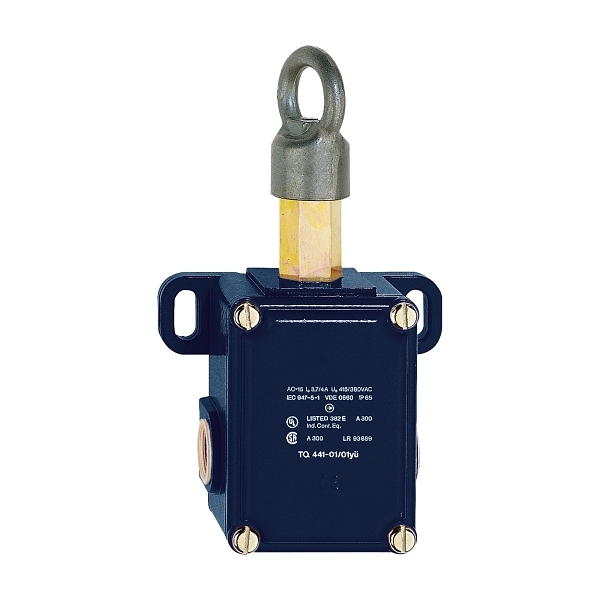

Steute Cable Pull Wire Switch Aluminium 1 NO Contact 1 NC Contact 60m M20
Item No. TQ4410101YU
Product Range: Cable Pull Wire Switch
Component Type (ETIM Class)
Emergency stop pull cord switch
Electrical
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Rated insulation voltage Ui400 V
Construction
Emergency stop buttonNo
Material housingAluminium die-cast
Max. length of pull cord60 m
Degree of protection (IP)IP65
Dimensions
Height185 mm
Width106 mm
Depth75.5 mm
Environment
Ambient temperature-25-70 °C
