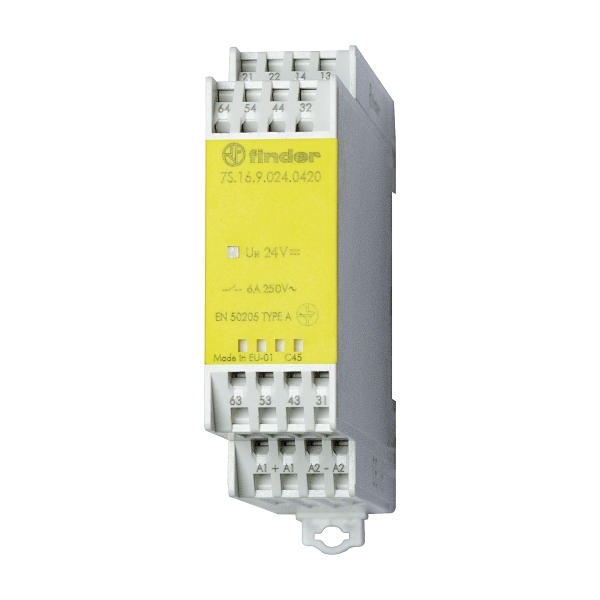

7S1690240420 Safety Modular Relay

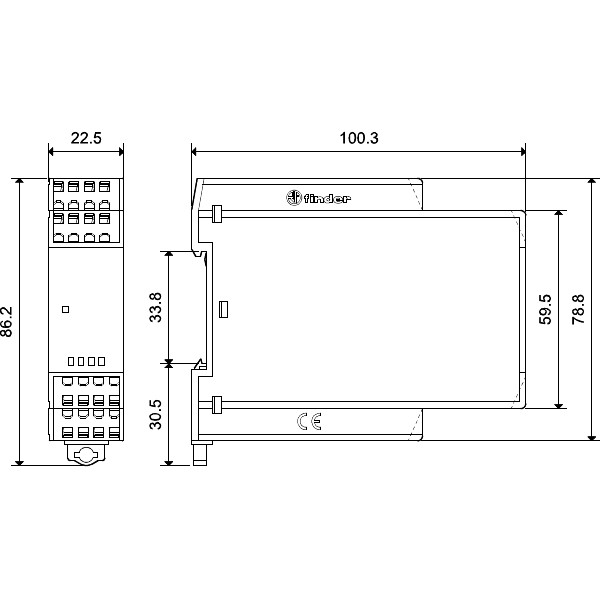

7S1690240420 Forcibly Guided Relay Dimensional Diagram
7S1690240420 Safety Modular Relay
7S1690240420 Forcibly Guided Relay Dimensional Diagram

Finder

Finder 7S Series Safety Relay Forcibly Guided 6A 24V DC Coil 4 N.O. 2 N.C. Contacts

Item No. 7S1690240420
Product Range: Safety Relay

Popular Accessories

Component Type (ETIM Class)
Switching relay
Electrical
Nominal current6 A
Nominal voltage AC250 V
Number of contacts as normally closed contact4
Number of contacts as normally open contact2
Rated switching power at AC-11500 VA
Rated switching power at AC-15, 230V700 VA
Breaking capacity at DC-1, 30V6 A
Breaking capacity at DC-1, 110V0.6 A
Voltage type for actuatingDC
Construction
IP ratingIP20
Mechanical
Mechanical life (service cycles)10000000 cycles
Max. shock acceleration20 g
Max. shock duration8 ms
Max. vibration acceleration10 m/s²
Max. vibration frequency, operational200 Hz
With detachable clampsNo
Dimensions
Width22.5 mm
Height78.8 mm
Depth96 mm
Environment
Operating temperature-40-70 °C
