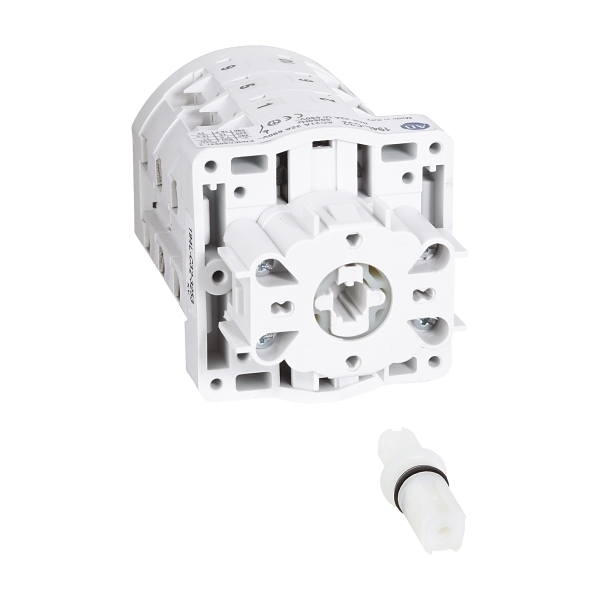

Allen-Bradley 194L Cam Switch 6Pole 12A Panel Mount 90 Degree Off On
Item No. 194LE121756
Product Range: 194L
Component Type (ETIM Class)
Off-load switch
Electrical
Number of poles6
Rated permanent current Iu12 A
Rated operation power at AC-3, 400 V4 kW
Rated operation current Ie at AC-15, 230 V5 A
Rated operation current Ie at AC-15, 400 V3 A
Rated operation current Ie at AC-22a, 690V12 A
Rated operation current Ie at AC-22a, 220-500V12 A
Rated operation current Ie at AC-21a, 690V12 A
Rated operation current Ie at AC-1, 690V12 A
Construction
ModelOn/Off switch
Mounting methodFront mounting
Material housingPlastic
Wire/conductor size, rigid cable1-2.5 mm²
Wire/conductor size, flex cable1-2.5 mm²
Degree of protection (IP), front sideIP20
Suitable for front mountingYes
Suitable for distribution board installationNo
Complete device in housingNo
Mechanical
With zero (off) positionYes
Mechanical life (service cycles)1000000 cycles
Number of switch positions2
With retraction in 0-positionNo

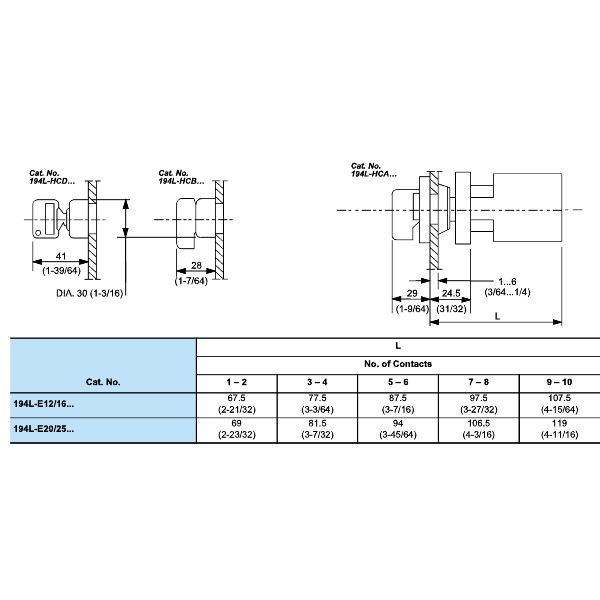

Dimensions
Depth64 mm
Width42 mm
Height42 mm
Environment
Operating temperature-25-60 °C
