Allen-Bradley

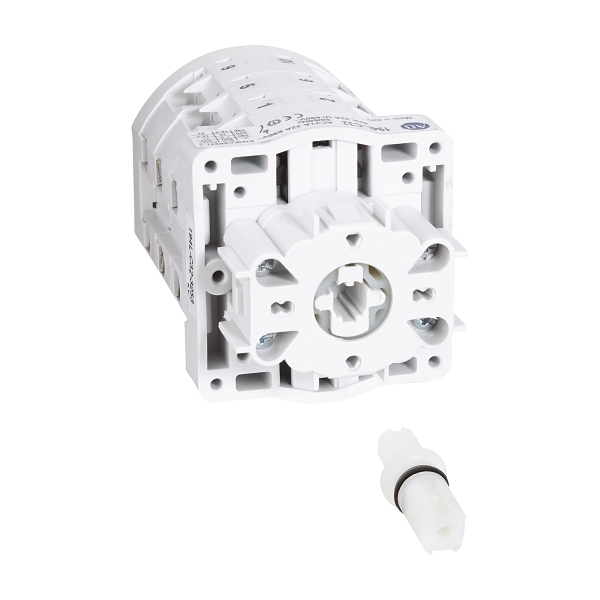

Allen-Bradley 194L Cam Switch 3Pole 25A Base Mount 90 Degree Off On
Item No. 194LA251753
Product Range: 194L
Component Type (ETIM Class)
Off-load switch
Electrical
Number of poles3
Rated permanent current Iu25 A
Rated operation power at AC-3, 400 V11 kW
Rated operation current Ie at AC-15, 230 V8 A
Rated operation current Ie at AC-15, 400 V6 A
Rated operation current Ie at AC-22a, 690V25 A
Rated operation current Ie at AC-22a, 220-500V25 A
Rated operation current Ie at AC-21a, 690V25 A
Rated operation current Ie at AC-1, 690V25 A
Construction
ModelOn/Off switch
Mounting methodDIN rail
Material housingPlastic
Wire/conductor size, rigid cable1.5-6 mm²
Wire/conductor size, flex cable1.5-4 mm²
Degree of protection (IP), front sideIP20
Suitable for front mountingNo
Suitable for distribution board installationNo
Complete device in housingNo
Mechanical
With zero (off) positionYes
Mechanical life (service cycles)1000000 cycles
Number of switch positions2
With retraction in 0-positionNo

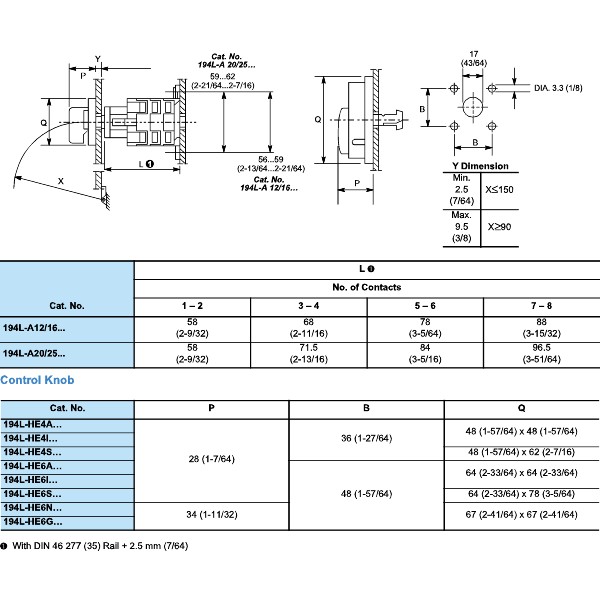

Dimensions
Depth71.5 mm
Height62 mm
Environment
Operating temperature-25-60 °C
