D7MLF6MN3WX10 Pushbutton 22mm
D7MLF6MN3WX10 Pushbutton 22mm

Sprecher + Schuh

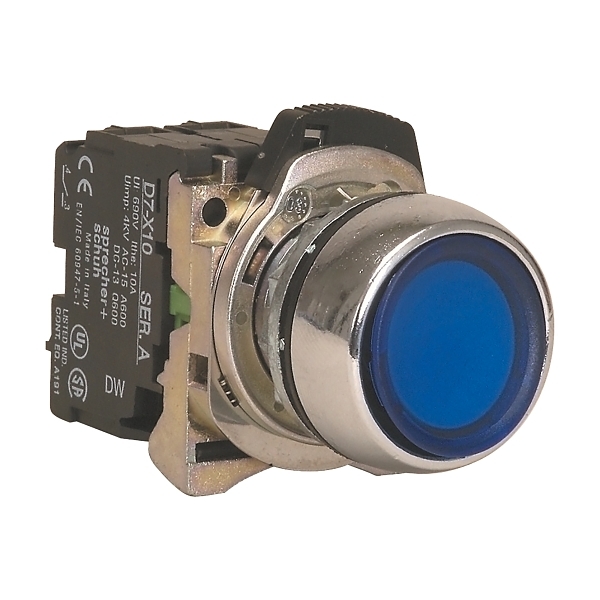

Sprecher and Schuh D7 Pushbutton 22.5 mm Complete Metal MOM Flush Blue Lens Cap 24V Illuminated 1NO

Item No. D7MLF6MN3WX10
Product Range: D7

Download product datasheet

Component Type (ETIM Class)
Push button, complete
Electrical
Number of contacts as normally open contact1
Number of contacts as normally closed contact0
Type of electric connectionScrew connection
Supply voltage lamp24 V
Construction
Colour buttonBlue
Type of buttonFlush
With front ringYes
Material front ringMetal
Degree of protection (IP)IP65/IP66
Mechanical
Switching function latchingNo
Shock acceleration (Max)100 g
Vibration acceleration (Max)10 m/s²
Vibration frequency, operational (Max)2000 Hz
Photometric
Suitable for illuminationYes

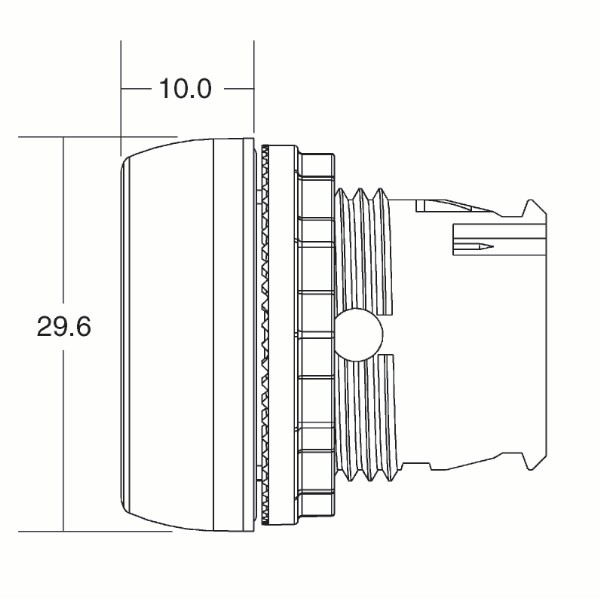

Dimensions
Hole diameter22.5 mm
Operator diameter29.6 mm
