Allen-Bradley

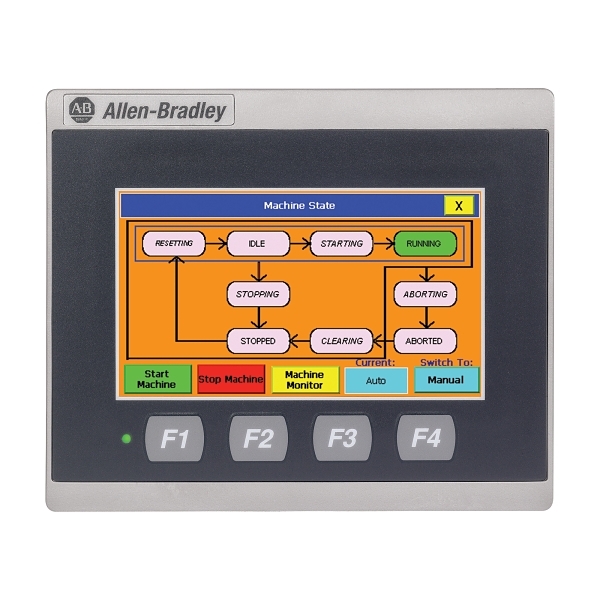

Allen-Bradley PanelView 800 Terminal 4.3 Inch TFT Touch Color Ethernet Serial 24VDC

Item No. 2711RT4T
Product Range: PanelView 800
Component Type (ETIM Class)
Graphic panel
Electrical
Supply voltage DC18-32 V
Voltage type of supply voltageDC
Number of pixels, horizontal480
Number of pixels, vertical272
Type of displayTFT
Touch technologyResistive touch
Useful project memory/user memory32000 kByte
Communication
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4221
Number of HW-interfaces RS-4851
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB1
Number of HW-interfaces parallel0
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetNo
Construction
Screen diagonal4 inch
With numeric keyboardYes
Degree of protection (IP), front sideIP65
Number of grey-scales/blue-scales of display0
With alpha numeric keyboardYes
Number of function buttons, programmable4
Number of buttons with LED0
Number of system buttons0
Process value representation (output) possibleYes
Photometric
With colour displayYes
Number of colours of the display16700000
Dimensions
Width of the front138 mm
Height of the front116 mm
Built-in depth43 mm
Environment
Operating temperature0-50 °C
