NHP's NLINE™ switches, isolators and GPOs



Reliable, easy operation, tested and approved - worry less about delivering power and think more on how you’ll use it.

The NLINE™ switching range offers weatherproof switches and isolators and weather protected GPOs, each with a comprehensive series of options and appropriate ratings to best suit your indoor or outdoor applications. The UV resistant polycarbonate enclosures consisting of an injected TPE gasket/membrane ensure the best protection against damaging dust and moisture ingress, ready for what Australia's elements throw at them.

Product range

Available through your local electrical wholesaler
  • GPOs
  • Switches
  • AC Isolators
  • DC Isolators

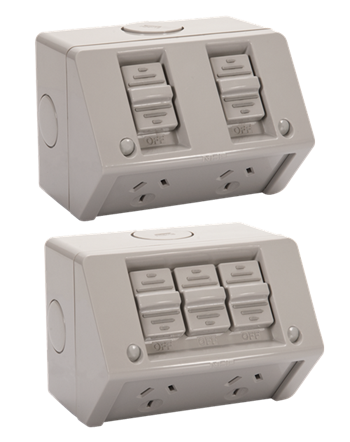

Weather protected GPOs


Tested and approved to

AS/NZS 3112

Outlet options:

Single & double


Arrangement:

3 flat pin

Current ratings:

10A or 15A


Ingress protection

IP53

Extra switch option:

Available



NLINE switches and gpos Digital  View GPO range

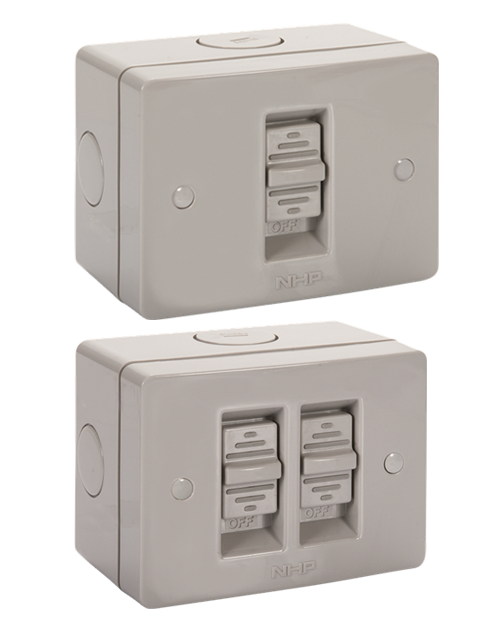

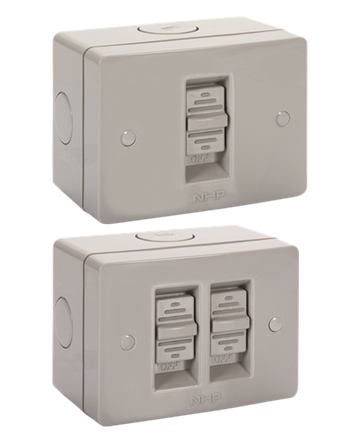

Weatherproof switches


Tested and approved to

AS/NZS 3133

Gang options:

1 to 3


Switching poles available:

1 & 2

Current ratings:

16 & 20A


Ingress protection

IP66

Enclosure option:

Small & large



NLINE switches and gpos Digital  View switch range

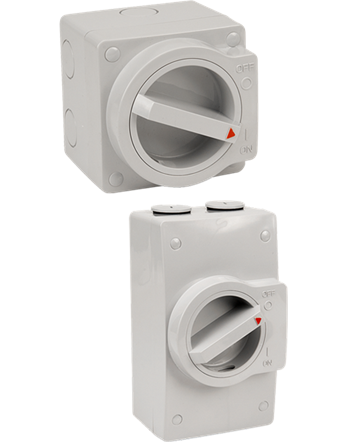

Weatherproof AC isolating switches


Tested and approved to

AS/NZS 3133

Padlockable:

Yes


Switching poles available:

1 to 3

Current ratings:

10, 20 & 40A


Ingress protection

IP66

Enclosure option:

Small & large



NLINE-switches-isolators-and-gpos-DIGITAL  View AC isolator range

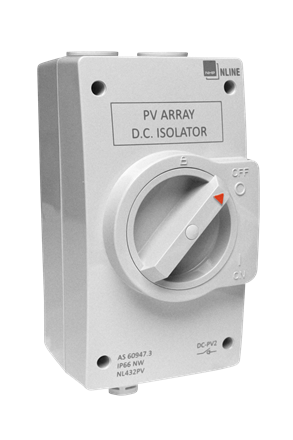

Weatherproof DC isolator


Fully compliant with:

AS 60947.3:2018

Padlockable:

In OFF


Pressure compensation device:

Included, pre-fitted

Ratings:

Up to 1500V d.c. available *


Ingress protection

IP66NW (No water)

Utilisation category

DC-PV2 / DC-21B



NLINE-switches-isolators-and-gpos-DIGITAL  View DC isolator range
* refer to datasheet and installation manual for full ratings

Product highlights

Indoor & outdoor applications

From cool rooms to caravans, find a NLINE™ product for your application.

Standard

Compliant to the appropriate standards and suitable to be used throughout Australia

Extensive range

The NLINE™ switching range offers various GPOs, switches and isolators for your needs

Easy installations

Easy to use back box with generic mounting holes and cable entries

Reliable

The NLINE™ suite of products offer top notch safety and reliance

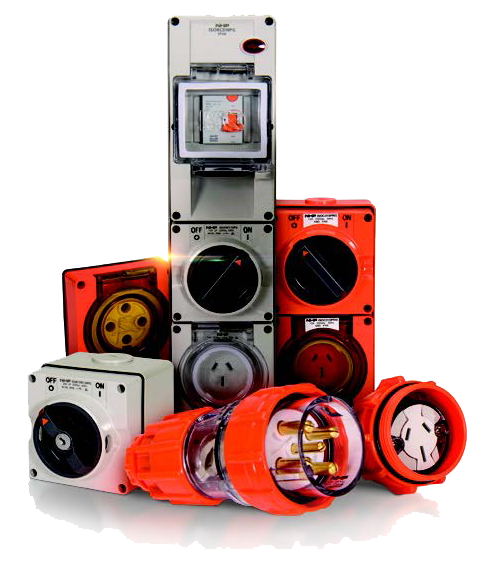

NHP ISO™ range

Safe and reliable connection and disconnection from power sources

Technical webinars

For more videos, subscribe to our NHP Youtube Channel

NHP Channel
Introduction to UtilisationCategories
IP ratings
