Delta Electronics

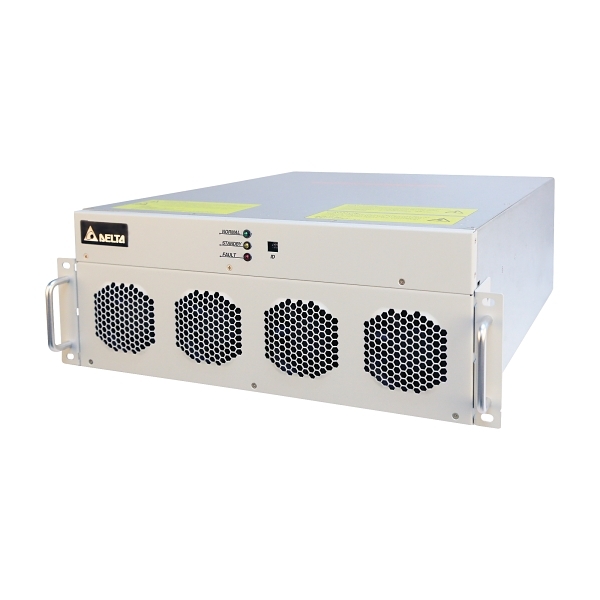

Delta Static Var Generator (SVG) Power Module 50kVAr 3 Phase 3 Wire Rear Connect Fixed Type
Item No. PQSVGM50XG3FRCX1A
Product Range: SVG Floor Standing
Component Type (ETIM Class)
Delta SVG module
Electrical
Three-wire modelYes
Four-wire modelNo
Rated operating voltage308-480 V
Rated frequency50-60 Hz
kVAr total rated capacity per module50 kvar
Communication
Communications protocolModbus-RTU, Modbus-TCP/IP
Mechanical
Response time20 s
Response time (instant)0.1 s
Mean time before failure (MTBF) (Min)100000 h
Dimensions
Width440 mm
Height600 mm
Depth174 mm
Weight30 kg
Environment
Thermal loss3 %
Operating temperature-10-50 °C
